TodolistProject

Architectur and Implementation

1. Architektur

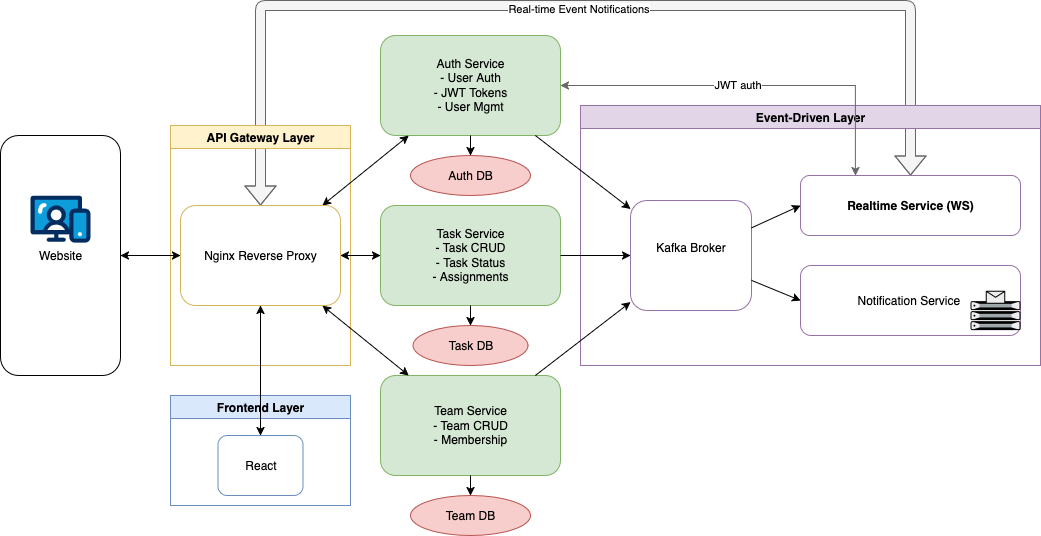

Diagram

new_architecture

1.1 General Overview

Solution
This project is a distributed Todo application system designed with a microservices architecture.
The initial design followed a pure microservices approach, but later—due to requirements from another course (Verteilte Systeme)—we extended the system with Apache Kafka.
This addition introduced an event-driven component, where Apache Kafka serves as the message middleware to enable asynchronous communication between the backend core business services (task,team,auth services), realtime service and notification service.
Kafka was implemented after the development of core business services. So it doesn’t support the communication between the three core business services. The business services (Auth, Task, Team) communicate via REST APIs. Task, Team and Auth services publish events to Kafka. Realtime and Notification services consume these events for real-time updates and email notifications.

Core Architecture Features:
Microservices Architecture: Decomposed monolithic application into independent services (Auth, Team, Task, Realtime, Notification)
Event-Driven: Using Kafka for loose coupling between (some) services
Real-time Communication: Providing real-time updates through WebSocket Containerized Deployment: Using Docker and Docker Compose for service orchestration
Load Balancing: Implementing API gateway and load balancing through Nginx

1.2 Key Architectural Decisions

Microservices: Independent services (Auth, Team, Task, Realtime, Notification) for scalability and maintainability.
Kafka: High-throughput message broker for event streaming and persistence.
WebSocket: Real-time bidirectional communication for collaborative features.
Seperate Database: Data isolation and independent scaling.

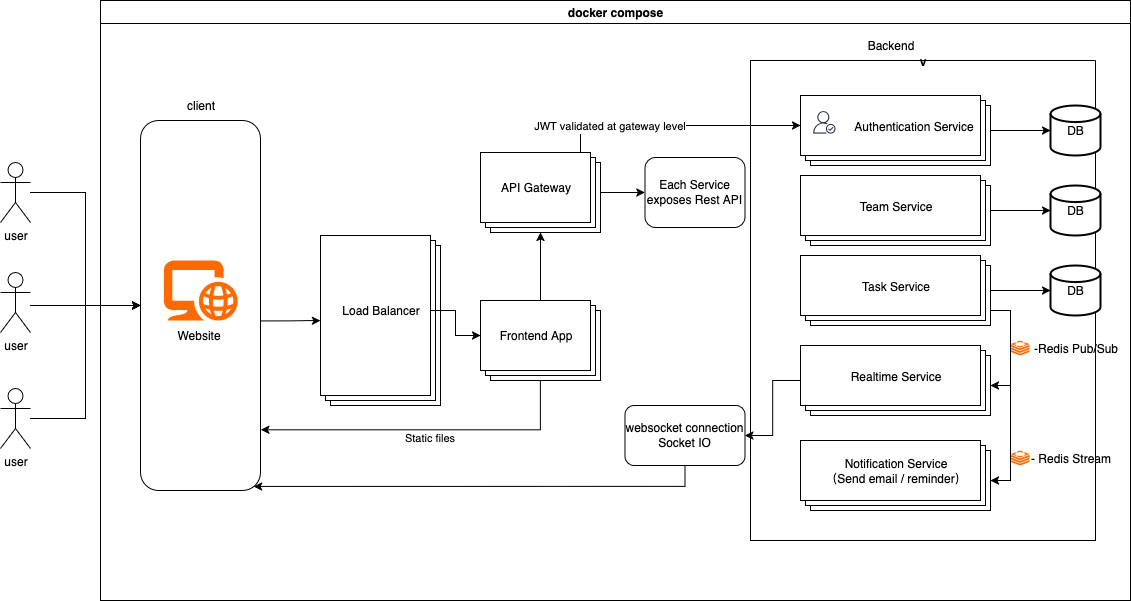

Original Architecture

The original architecture was already microservices-based but used Redis for caching and direct service communication.

1.3 System Components

Frontend: React 18 + TypeScript SPA with WebSocket client
API Gateway: Nginx reverse proxy with load balancing
Services:
- Auth Service: JWT authentication, user management
- Team Service: Team CRUD, member management
- Task Service: Task CRUD, event publishing
- Realtime Service: WebSocket hub, Kafka consumer
- Notification Service: Email notifications
- Data: MySQL databases (one per service)
- Message Broker: Apache Kafka

2. Data Flow Architecture

Authentication Flow

User → Frontend → Nginx → Auth Service → Auth DB
                ↓
            JWT Token → Frontend Storage

Task Management Flow

User → Frontend → Nginx → Task Service → Task DB
                ↓              ↓
            JWT Validation  Team Service (permission check)
                ↓              ↓
            Auth Service    Team DB

Real-time Updates Flow

Task Service → Kafka → Realtime Service → WebSocket → Frontend
     ↓              ↓
Notification Service → SMTP → Email

Event-Driven Architecture

Service Actions → Kafka Events → Multiple Consumers
                      ↓
              ┌─────────────────┐
              │ Realtime Service│ → WebSocket Updates
              └─────────────────┘
                      ↓
              ┌─────────────────┐
              │Notification Svc │ → Email Notifications
              └─────────────────┘

3. Technology Stack

Backend Services

Language: Go 1.21+
Framework: Gin (HTTP framework)
Database: MySQL 8.0
Message Queue: Apache Kafka
Authentication: JWT (JSON Web Tokens)
Migration: DBMate

Frontend

Framework: React 18 with TypeScript
Build Tool: Vite
Routing: React Router
State Management: React Context + Local Storage
Real-time: WebSocket API
HTTP Client: Fetch API

Infrastructure

Containerization: Docker & Docker Compose
Reverse Proxy: Nginx
Development: Mailpit (SMTP testing)
Database Admin: phpMyAdmin (optional)

Key Implementation Details

Backend by Ziyi Hong: backend_overview
Frontend by Danylo Tulainov: frontend_overview
